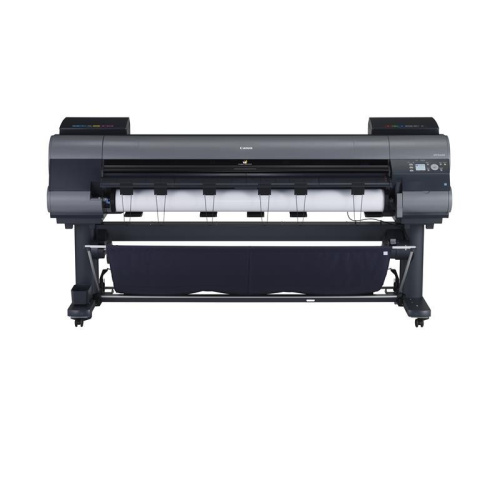

Canon ImagePROGRAF iPF9400 60" Printer
Printing Method
Printing Technology Inkjet printer with non-firing nozzle detection and compensation
Maximum Resolution 2400 x 1200 dpi
Minimum Ink Droplet Size 4.0 pl
Ink Type LUCIA EX Ink (Pigment based)
Ink Palette Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Red, Green, Blue, Gray, Photo Gray
Ink Cartridge Configuration 12 individual cartridges
Ink Cartridge Capacity 11.16 or 23.67 fl oz (330 or 700 ml) per color
Compatible Ink Cartridges PFI-306 MBK Matte Black
PFI-306 BK Black
PFI-306 C Cyan
PFI-306 M Magenta
PFI-306 Y Yellow
PFI-306 PC Photo Cyan
PFI-306 PM Photo Magenta
PFI-306 R Red
PFI-306 G Green
PFI-306 B Blue
PFI-306 GY Gray
PFI-306 PGY Photo Gray
PFI-706 MBK Matte Black
PFI-706 BK Black
PFI-706 C Cyan
PFI-706 M Magenta
PFI-706 Y Yellow
PFI-706 PC Photo Cyan
PFI-706 PM Photo Magenta
PFI-706 R Red
PFI-706 G Green
PFI-706 B Blue
PFI-706 GY Gray
PFI-706 PGY Photo Gray
Number of Nozzles 2,560 nozzles per color
30,720 nozzles total
Nozzle Pitch 1200 dpi
Paper Handling
Paper-Feed Method Roll Feed: 1 Roll, front output
Sheet Feed: 1 sheet, manual feed, front output
Paper Types Plain, Coated, Photo, Proofing, Art, Sign/CAD
Paper Sizes US: Letter, Legal, Ledger, Super B, 13.0 x 22.0" (33.02 x 55.88 cm)
ISO: A0, A1, A2, A2+, A3, A3+, A4, B0, B1, B2, B3, B4
JIS: B0, B1, B2, B3, B4
ANSI: C, D, E, F
ARCH: A, B, C, D, E1, E2, E3
DIN: C0, C1, C2, C3, C4
US Photo 16.0 x 20.0" (40.64 x 50.8 cm)
Poster: 20.0 x 30.0" (50.8 x 76.2 cm), 30.0 x 40.0" (76.2 x 40.64 cm), 42.0 x 60.0" (106.68 x 152.4 cm), 44.0 x 62.0" (111.76 x 157.48 cm), 50.0 x 70.0" (127.0 x 177.8 cm), 54.0 x 76.0" (137.16 x 193.04 cm), 60.0 x 84.0" (152.4 x 213.36 cm)
Other: 8.0 x 10.0" (20.32 x 25.4 cm), 10.0 x 15.0" (25.4 x 38.1 cm), 10.0 x 12.0" (25.4 x 30.48 cm), 12.0 x 16.0" (30.48 x 40.64 cm), 14.0 x 17.0" (35.56 x 43.18 cm), 18.0 x 22.0" (45.72 x 55.88 cm), 20.0 x 24.0" (50.8 x 60.96 cm)
Custom: 8.0 x 8.0 to 60.0 x 63.0" (20.32 x 20.32 to 152.4 x 160.0 cm)
Roll Width: 10.0 to 60.0" (25.4 to 152.4 cm)
Roll Print Length: Up to 59.1' (18.0 m)
Borderless Printing Width 10.0" (25.4 cm), 14.0" (35.56 cm), 17.0" (43.18 cm), 24.0" (60.96 cm), 36.0" (91.44 cm), 42.0" (106.68 cm), 44.0" (111.76 cm), 50.0" (127.0 cm), 60.0" (152.4 cm)
JIS B2 (20.28" / 51.5 cm), JIS B0 (40.55" / 103.0 cm), ISO A1 (23.39" / 59.4 cm), ISO A0 (33.11" / 84.1 cm)
Media Weight 70 to 470 g/m2
Media Thickness 2.8 to 31.0 mil (0.07 to 0.8 mm)
Maximum Media Roll Diameter 6.0" (15.24 cm)
Core Size 2.0, 3.0" (5.08, 7.62 cm)
Connectivity
Interfaces High-Speed USB 2.0
10 / 100 / 1000 Base-T / TX Ethernet
Network Protocols IPX / SPX, SNMP (Canon-MIB compatible), HTTP, TCP / IP, AppleTalk
OS Compatibility Windows: XP, Vista (32 / 64-bit) Windows 7 (32 / 64-bit) Macintosh OS X
Input Buffer 640 MB
Hard Drive Capacity 250 GB
Printer Language GARO
Physical
Control Panel LCD
LEDs Message, Roll Media, Cut Sheet Media
Buttons: Power, Menu, OK, Stop, Navigate, Back, Cut, Feed, Load, 4 directional arrows
Power Requirements 100 to 240 VAC (50 to 60 Hz)
Power Consumption Maximum: 190.0 W
Standby: ≤ 6.0 W
Power Off: ≤ 0.5 W
Acoustic Noise Operation: ≤ 68 dB(A)
Standby: ≤ 35 dB(A)
Certifications International Energy Star Program (worldwide), Law on Promoting Green Purchasing (Japan), GPN, RoHS directive, IT Eco Declaration (Europe), WEEE, U.S. presidential directives, J-MOSS (Green Mark), Chinese RoHS, ErP Lot6 (Europe)
Temperature / Humidity Operating Temperature: 59 to 86°F (15 to 30°C)
Operating Humidity: 10 to 80%
Dimensions (WxDxH) 90.5 x 30.2 x 45.0" (229.87 x 76.71 x 114.3 cm)
Weight 362.0 lb (164.2 kg) including stand
Packaging Info
Package Weight 562.0 lb
Box Dimensions (LxWxH) 98.0 x 48.5 x 40.0"
- Availability: In Stock
