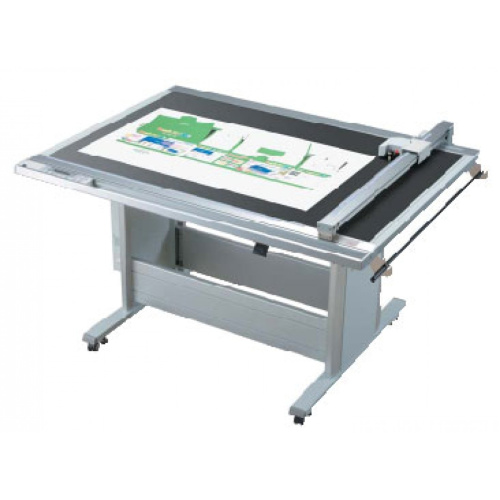

Graphtec FC2250-120VC
The FC2250 series is available with different table size and media hold down methods depending on the application requirements. A wide range of materials can be cut with great precision, including PET film for electronic design, chipboard, magnetic sheet or roll, matte board, gasket, marking film, sandblast rubber, high-intensity reflective film, and more!
The FC2250 Large Format flatbed cutting plotter is available in 3 table sizes: 24″x36″, 47″x36″ and 68.5″x36″, with optional tool head configurations and material hold-down systems. Dual Head Design features 500 grams and 1000 grams maximum down force for more efficient marking and cutting workflows.
Features
Dual Head Design: 500/1000 grams Cutting Force
2 Media Hold down methods available: Electrostatic or Vacuum
Operate in Horizontal or Inclined Model (Vacuum table-horizontal only)
D-Cut Software imports DXF Datax
Cutting Master Plug-in for Adobe® Illustrator
0.118″ (3mm) Blade for cutting thicker material up to E Flute
New Optional Creasing Tool for Corrugated Media
Employed in These Industries
Garment Pattern Cutting & Marking
Shoe Pattern Cutting & Marking
Package Design Prototyping
Monument & Stone Sandblast Mask
Industrial Films for Electronics
Reflective Highway and Road Signs
Offset Printing Blanket cutting
Architectural Model Building
The FC2250 Series Cutting Plotters Handle a Wide Range of Media
Apparel patterns
Compressed foam sheets
Corrugated cardboards
Packaging samples
Containers and road signs
Sandblast rubber templates
Stencils, gaskets
Packaging short run
The FC2250 Comes in Three Table Sizes
FC2250-60 24″ X 36″
FC2250-120 36″ X 47.2″
FC2250-180 36″ X 68.5″
Specfications
Model name FC2250-60VC FC2250-120VC FC2250-120MG FC2250-180VC
Configuration Digital servo system, Flatbed
Media hold-down method Vacuum suction *1 Magnetic Vacuum suction *1
Effective cutting area 610 x 920 mm
(24.0 x 36.0 inch) 1200 x 920 mm
(47.2 x 36.0 inch) 1740 x 920 mm
(68.5 x 36.0 inch)
Mountable media 950 mm (37.4 inch)(Y-axis direction)
Media type 6Marking film (vinyl, fluorescent, and reflective)
Stiff paper/card (for stencils, etc.)up to 1.0 mm thick *2
Polystyrene foam sheets *3
Sandblast rubber sheets up to 1.0 mm thick *3
Microflute board (F/G grades)
Clear sheets for plastic boxes
High-intensity reflective film *4
Maximum cutting speed 400 mm/s (16 inch/s) (1 to 40 cm/second in 40 steps)
Cutting pressure Tool 1: Max. 4.9N (500 gf), in 40 steps
Tool 2: Max. 9.8N (1 kgf), in 40 steps
Minimum character size approx. 10 mm square (varies with the character font and media)
Mechanical resolution 0.0025 mm (2.5μm)
Programmable resolution GP-GL mode: 0.1/0.05/0.025/0.01 mm
HP-GL™ *5 : 0.025 mm
Distance accuracy Max. 0.1% of the distance moved or 0.1 mm, whichever is lager *6
Perpendicularity Max. 0.5 mm / 900 mm
Repeatability Max 0.1 mm *6
Standard interfaces RS-232C, USB2.0 (Full speed)
Buffer memory 2 Mbyte
Command sets GP-GL and HP-GL™ *5 emulation (selected by menu)
Number of tools 2 tools
Cutter blade, pen,
and tool types Cutter blade: supersteel
Pens: Water-based fiber-tip pen, oil-based ballpoint pen
Creasing/scoring tool
Others ARMS (Advanced Registration Mark Sensing System), Reverse-side cutting and creasing with ARMS, Copy function, Creasing function, Repeatedly cut function
Power supply 100 to 240 VAC, 50/60 Hz (Auto switching)
Power consumption Max. 120 VA
Operating environment Temperature: +10 to +35 degree C (44 to 95 degree F) , Humidity: 35 to 75% RH (non-condensing)
Guaranteed accuracy environment Temperature: +16 to +32 degree C (55 to 90 degree F), Humidity: 35% to 70% RH (non-condensing)
External dimensions
(W x D x H) *7 920 x 1285 x 857mm *8
(36.2 x 50.6 x 33.7 inch) 1568 x 1285 x 944 mm *8
(61.7 x 50.6 x 37.2 inch) 2068 x 1285 x 944 mm *8
(81.4 x 50.6 x 37.2 inch)
The table cannot be tilted The table cannot be tilted 1568 x 987 x 1687 mm *9
(61.7 x 38.9 x 66.4 inch) The table cannot be tilted
Weight approx. 58 kg *10
(128 lbs.) approx. 69 kg *10
(152 lbs.) approx. 74 kg *11
(163 lbs.)
Compatible OS Windows 10 / 8.1 / 8 / 7 / Vista, Macintosh OS X10.6-10.10 *11
Certifications UL , cUL , CE making, FCC-A, EN55022-A, RoHSCling
