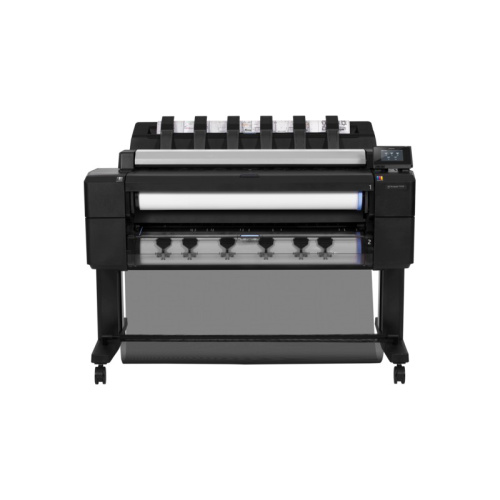

HP DesignJet T2530 36in PostScript Multifunction Printer
Printing Technology HP Thermal Inkjet
Maximum Resolution Up to 2400 x 1200 optimized dpi
Print Speed Print Time Line Drawing: 21 sec/page on A1/D (economode)
Print Speed Line Drawing: 120 A1/D prints per hour (economode)
Ink Type Dye-based: C, G, M, pK, Y
Pigment-based: mK
Ink Droplet Size C, M, Y, G, pK: 6 pL
mK: 9 pL
Ink Cartridge Configuration 6 x Cartridges: cyan, gray, magenta, matte black, photo black, yellow
Ink Cartridge Capacity 130 or 300 mL
Margins Top x Bottom x Left x Right:
Roll: 0.12 x 0.12 x 0.12 x 0.12" (3 x 3 x 3 x 3 mm)
Sheet: 0.12 x 0.87 x 0.12 x 0.12" (3 x 22 x 3 x 3 mm)
Line Accuracy ±0.1%
Printhead C, G, M, mK, pK, Y
Minimum Line Width 0.8 mil (0.02 mm) (HP-GL/2 addressable)
Guaranteed Minimum Line Width 2.8 mil (0.07 mm) (ISO/IEC 13660:2001(E))
Maximum Optical Density Black: 2.15 D (6 L* min)
Applications Line drawings, renderings, presentations, maps, orthophotos
Memory 128 GB (file processing)
Hard Disk 500 GB
Media Types & Handling
Paper Handling Input: two automatic front-loading roll feeds, smart roll switching, sheet feed
Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter
Paper Types Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
Media Sizes Standard:
Rolls: 11 to 36" (27.9 to 91.4 cm)
Sheets: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
Custom: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)
Roll External Diameter: 5.5" (14 cm)
Media Thickness Up to 19.7 mil (0.5 mm)
Connectivity
Interfaces Gigabit Ethernet (1000Base-T)
USB 2.0
Printer Language Adobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
Printing Paths Direct printing from USB flash drive, email printing, HP driver for Windows, HP driver for Mac OS X, HP Print Service for Android, Apple AirPrint driver
Drivers Included: HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X
Scanner
Scanner Type Sheetfed, CIS (Contact Image Sensor)
Scan Speed Color: Up to 2.5 in/sec (6.35 cm/sec)
Grayscale: Up to 7.5 in/sec (19.05 cm/sec)
Scan Resolution Up to 600 dpi
Paper Handling Straight-through scan paper path for sheet and cardboard originals
Maximum Scan Size JPEG: 36 x 315" (91.4 x 800 cm) ()
PDF: 36 x 197" (91.4 x 500 cm) ()
TIFF: 24 x 590.5" (61 x 1,500 cm ()
Thickness Up to 1.2 mil (0.03 in)
Copier
Reduction / Enlargement 25 to 400%
Number of Copies Up to 99 copies
Copier Settings Copy quality, copy color, roll, content type, original paper type, background removal, contrast, de-skew, blueprints support
Physical
Temperature Operating: 41 to 104°F (5 to 40°C)
Storage: -13 to 131°F (-25 to 55°C)
Operating Humidity 20 to 80% RH
Acoustic Noise Sound Pressure: 47 dB(A) (printing); 39 dB(A) (ready); Sound Power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
Power Consumption Printing: 120 W
Sleep: 1.3 W (5 W with embedded Digital Front End)
Input Voltage Auto Ranging: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz)
Input Current 2 A maximum
Certifications Safety:
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS)
Electromagnetic:
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)
Environmental:
ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze
Dimensions (WxDxH) 55.1 x 36.1 x 43.7" (139.9 x 91.6 x 111 cm)
Weight 245 lb (112 kg)
Model:T2530 36in
