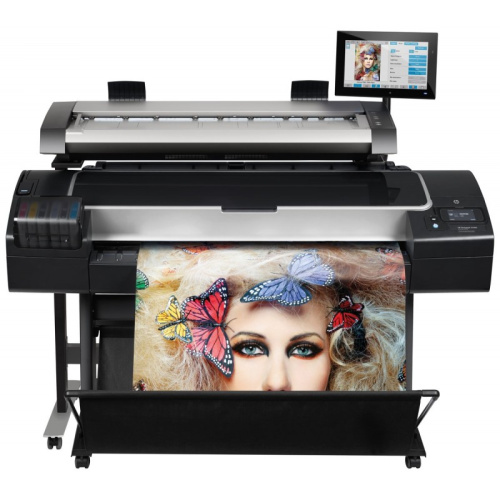

HP DesignJet HD Pro Multifunctional Printer
Printer
Print Speed Maximum: 570 ft² / 53 m² per hour
Print Resolution Up to 2400 x 1200 optimized dpi
Margins 0.2 x 0.2 x 0.2 x 0.2" / 5 x 5 x 5 x 5 mm (borderless on photo roll media)
Sheet: 0.2 x 0.67 x 0.2 x 0.2" / 5 x 17 x 5 x 5 mm
Ink Types Pigment-based
Ink Cartridges Cyan, light, gray, magenta, matte black, photo black, yellow
Line Accuracy ±0.1%
Minimum Line Width 0.0015" / 0.04 mm (HP-GL/2 addressable)
Guaranteed: 0.0031" / 0.08 mm (ISO/ IEC 13660:2001, E)
Media Handling: 2 automatic roll feeds, smart roll-switching, sheet feed, media output bin, automatic cutter
Roll Size: 11 to 44" / 27.9 to 111.8 cm
Sheet Size: 8.3 x 11" to 44 x 66" / 21 x 27.9 cm to 111.8 x 167.6 cm
Standard Sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
Thickness: Up to 31.5 mil / 0.8 mm
Applications Line drawings, renderings, maps, orthophotos, graphic design, office graphics, posters, photos, digital fine art, banners, exhibition, event graphics, light boxes - film, point of sale/display
Memory 64 GB (virtual)
320 GB hard disk
Connectivity Interfaces: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect accessory slot
Print Languages: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2, and HP-RTL
Printing Paths: Printer driver, HP Embedded Web Server, HP Instant Printing PRO, direct printing from USB flash drive, email printing
Acoustic Sound Pressure: 45 db (printing), 23 dB (ready)
Sound Power: 6.7 B (printing), 4.1 B (ready)
Power Consumption: < 120 W (printing), < 27 W (ready), < 5 W (sleep), 0.1 W (off)
Requirements: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz), 2 A (max)
Certifications & Approvals Safety: USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia/Kazakhstan (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE)
Electromagnetic: Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)
Environmental: ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, EPEAT Bronze
Scanner
Scan Sensor CCD
Scan Speed Color: Up to 6" / 15 cm per second
Grayscale: Up to 13" / 33 cm per second
Resolution Enhanced: 9600 dpi
Optical: 1200 dpi
Maximum Scan Width 42" / 106.7 cm
Scan Input Modes Scan preview, scan to file, scan to email, scan to USB, scan to print, scan to FTP, copy, batch scanning, batch copying, collate copy, copy to simultaneous printers
Media Handling: Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media up to 0.6" / 15 mm original thickness
Width: Up to 44" / 111.8 cm
Thickness: Up to 0.6" / 15 mm
Memory 2 GB memory
500 GB hard disk
Connectivity Interfaces: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified
Acoustic Sound Pressure: 47 dB (scanning), < 22 dB (ready), < 22 (sleep)
Sound Power: 6.4 B (scanning), < 3.9 B (ready), < 3.9 B (sleep)
Power Consumption: 90 W (scanning), 80 W (ready), < 3 W (sleep)
Requirements: 100 to 240 VAC (±10%), 50/60 Hz, 5 A (max)
Certification Safety: USA and Canada (UL certified), EU (LVD and EN 60950-1 compliant), Russia (EAC), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC)
Electromagnetic: Compliance for Class A ITE products: EU (EMC Directive), USA (FCC Rules), Canada (ICES), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP), Taiwan (BSMI), Russia (EAC)
Environmental: ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT, Bronze
General
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -13 to 131°F / -25 to 55°C
Operating Humidity 20 to 80% RH
Dimensions 69.7 x 44.9 x 59.1" / 177 x 114 x 150 cm
Weight 346.1 lb / 157 kg
Model:HD Pro Multifunctional
- Availability: In Stock
