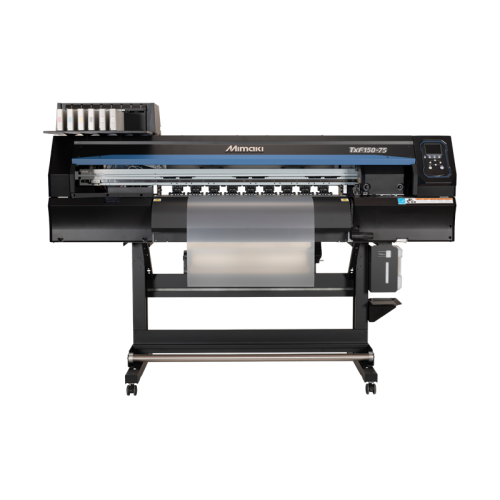

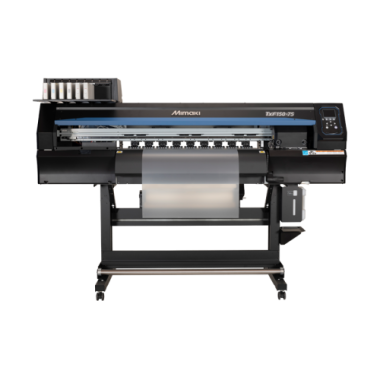

Mimaki TXF150-75 DTF printer
Mimaki's first DTF (Direct To Film) printer
TxF150-75 is a reliable, high-quality printer incorporating Mimaki's technologies based on "safety and stability.” The DTF printer is designed to focus on stable quality, including functions to prevent "ink ejection failure" and "white ink clogging," which have been significant issues for DTF printers.
Equipped with the newest version of Mimaki Circulation Technology (MCTv2) that prevents white ink sedimentation by constantly circulating the ink
A degassed aluminum ink pack prevents nozzle clogging by reducing oxygen and other gases from mixing with the ink.
The nozzle check unit (NCU) & Nozzle Recovery System (NRS) check for clogged nozzles and automatically perform nozzle cleaning and replacement without interrupting printing.
Our Core Technologies
Mimaki Advanced Pass System
Variable Dot Technology
Mimaki Bulk Ink System
Waveform Control
Uninterrupted Ink Supply System
Mimaki Fine Diffusion
Nozzle Check Unit
Nozzle Recovery System
Mimaki Circulation Technology
Mimaki Advanced Pass System
Specifications
Printhead
On-demand piezo head
Print resolution
720dpi, 1,440dpi
Print speed (4 color)
up to 35.5 ft²/hr (3.3m²/hr)
Maximum Print Width
800mm (31.5″in)
Maximum media width
810mm (31.9 in)
Maximum Media Thickness
up to 0.04″ (1 mm)
Maximum Media Weight
Up to 99.2 pounds (45 kg)
Ink Type
Heat transfer pigment ink PHT50 (C,M,Y,K,W)
Interface
Ethernet 1000 BASE-T / USB2.0
Power Supply
Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power Consumption
100V system: 1.44kW, 200V system: 1.92kW
Operational Environment
Temperature 20° – 30°C
Humidity: 35 – 65 % RH (Noncondensing)
Dimensions (W × D × H)
1,965mm×700mm×1,392mm
(77.4 x 27.6 x 54.8 in)
Weight
126kg (277.8 lb)
Certifications
VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH,
Energy Star, RCM, KC
Inks
Thermal transfer pigment ink (PHT50) Cyan Magenta Yellow Black White
600ml PHT50-C-60 PHT50-M-60 PHT50-Y-60 PHT50-K-60
500ml PHT50-W-50
Model:Mimaki TXF150-75 DTF printer
- Availability: In Stock
