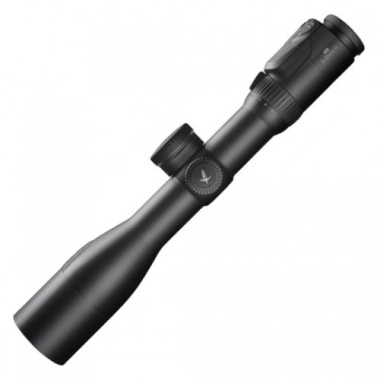

Swarovski DS 5-25×52 P Riflescope 4A-I Reticle
Meet the revolutionary Swarovski dS 5-25x52 digital rifle scope! The Swarovski dS 5-25x52 projects relevant information in the field of view in real time without any distraction, and automatically displays the correct aiming point. This includes taking into account all the key factors, such as distance, air pressure, temperature, and angle. No manual adjustment is required. The aiming point is calculated by the Swarovski dS 5-25x52 on the basis of the individual ballistic data for the firearm-ammunition combination. The data input happens via the Swarovski dS Configurator App and the calculated ballistic curve is transferred directly to the Swarovski dS via Bluetooth.
Features:-
5x Zoom
Laser Range Finder measures 30 m - 1375 m
Electronic Custom Bullet Drop Compensation
Knock-Down Power Display
Custom Ballistic Input
Windage Compensation Assist
Dioptric correction
Side Parallax Adjustment
Illumination Intensity Adjustment
Main Tube of 40 mm dia.
Submersion Tightness to 4 metres - Nitrogen-Filled
Swarovski Lifetime Warranty
Technical Data:-
Magnification
5-25
Effective objective lens diameter (mm)
48-52
Exit pupil diameter (mm)
9.6-2.1
Exit pupil distance (mm) (Eye relief)
95
Field of view (ft/100 yds / m/100 m)
21.9-4.5 / 7.3-1.5
Field of view (degrees)
4.2 - 0.84
Field of view, apparent (degrees)
21.5
Dioptric compensation (dpt)
-3 to 2
Light transmission (%)
83
Twilight factor acc. to ISO 14132-1
14.1 - 36.0
Impact point corr. per click (in/100 yds / mm/100 m)
0.25 / 7
Max. elevation / windage adjustment range (in/100 yds / m/100 m)
43/25 / 1.2/0.7
Parallax correction (yds / m)
55-∞ / 50-∞
Objective filter thread
M 63x0.75
Length (in / mm)
15.87 / 403
Weight (oz / g)
38.4 / 1090
Central tube diameter (mm)
40
Functional temperature
14 °F to 131 °F (-10 °C / 55 °C)
Storage temperature
-22 °F to 158 °F (-30 °C / 70 °C)
Submersion tightness
13 ft / 4 m water depth (inert gas filling)
Illumination brightness levels
64
Operating time
500x
Display
LCoS monochrome
Measurement range (yds/m)
33-1500 / 30-1375
Measurement precision (yds/m)
1/1
Angle measurement (degrees) /-
60
Max. aiming point correction (yds/m)
1120 / 1024
Add-on program (App)
dS Configurator
Operating System
iOS from Version 8.1, Android from Version 4.4 KitKat
- Availability: In Stock
