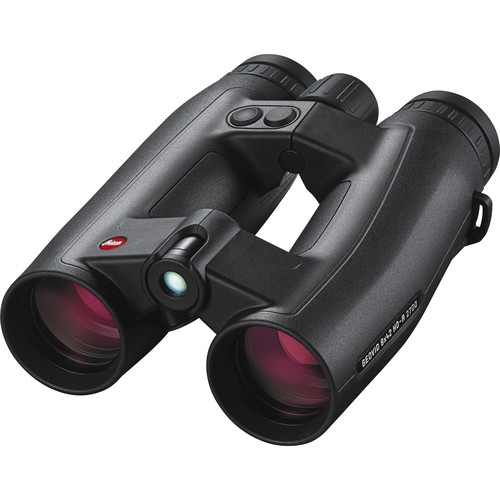

Leica Binocular Geovid 8x42 HD-R

The Leica Geovid 8x42 HD-R Binocular fuses the image quality of a fully multi-coated optical path with the practicality of a 1800-meter laser rangefinder and integrated ballistics computer. Using an array of built-in sensors, this electro-optic measures the ambient atmospheric conditions as well as the shooter's angle relative to the target.

Features

Optical Performance

- 8x magnification
- 42mm objectives lenses
- Perger Porro prisms optical path
- Perger prisms provide the streamlined form-factor of roof prisms, combined with the depth of field of Porro prisms
- Anti-reflection fully multicoated optics using proprietary High Durable Coating (HDC) lens coatings
- P40 phase correction prism coatings correct for chromatic aberration for enhanced color fidelity and image contrast
- 385.5' field of view at 1000 yd
- 58° Angle of view

Rangefinder

- Basic center square reticle
- Display: 4-digit LED with automatic brightness
- Class 1 eye safe IR laser
- Beam divergence: Approx. 0.5 x 2mrad
- Maximum measurement duration: Approximately 0.9s
- Unit of measure: yards/inches or meters/centimeters
- Range: 30-6000' (10-1825m)
- Measuring accuracy: ±3.3' to 1640' (1 to 500m); ± 6.6' to 3280' (2 to 1000m); ±0.5% over 3280' (1000m)
- Battery: One CR2 3V lithium button cell, type
- Battery life: Approximately 2,000 measurements at 68°F (20°C)

Advanced Ballistic Compensation

- Scan mode and single-spot measurement
- Automatically adjusts displayed distance to compensate for angle to subject, ambient temperature, and atmospheric pressure out to 1800' (550m)
- Allows the system to display the equivalent horizontal range, the corresponding point of aim, or the number of clicks required for quick adjustment in 1, 1/3, or 1/4 MOA
- Programmable ballistic drop curves from pre-loaded selection menu
- Customized ballistic curves possible using on-line tool and saving to memory card

Use and Handling

- Open bridge configuration
- Large knurled center focus wheel
- Twist-up 4-position click-stop rubber eyecups
- ±4 dual dioptric corrections
- 18mm eye relief, 5.25mm exit pupil
- 56-74mm interpupillary adjustment

Construction Details

- Lightweight and durable magnesium chassis
- Protective slip-resistant rubber armoring
- Hydrophobic Aqua-Dura coating on external lenses beads water, grease, and oil to make cleaning easier
- Nitrogen-filled: Fogproof; waterproof to 16' (5m)
- Electrical system operating temperature: -4 to 131°F (-20 to 55°C)
- Mechanical system operating temperature: -22 to 131°F (-30 to 55°C)
