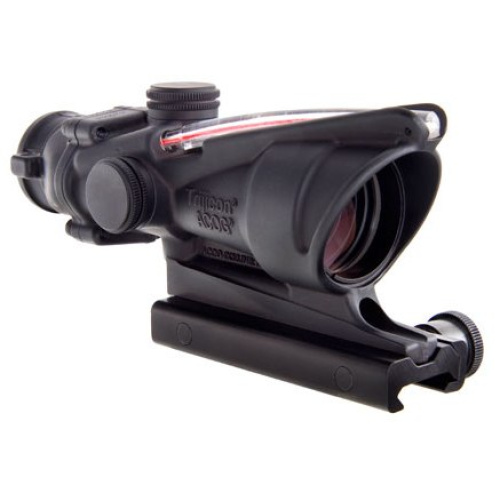

Trijicon ACOG 4×32 Red Chevron BAC .223 – TA31F

Experience the Trijicon ACOG 4×32 scope with Red Chevron BAC .223 Reticle. The ranging reticle of the Trijicon ACOG 4×32 is calibrated for 5.56 (.223 cal) flat-top rifles to 800 meters, and the scope includes Flat Top Adapter. The chevron reticle of the Trijicon ACOG 4×32 is designed to be zeroed using the tip at 100 meters, and the width of the chevron at the base is 5.53 MOA which translates to 19” at 300 meters. The reticle is dually Illuminated (Fiber optics provides daylight illumination and tritium illuminates at night). This allows range estimation for silhouette targets with the Trijicon ACOG 4×32. Slim, compact, rugged and tough, manufactured in the USA.

Features
Tough Exterior
Tritium-Phosphor Lamp – Aiming reticle glows in low-light conditions for quick target acquisition.
Black-Matte Finish – Eliminated glare and light reflection.
Red Chevron BAC Reticle – The ranging reticle is calibrated for 5.56 (.223 cal) flattop rifles to 800 meters.
Includes Flat Top Adapter.
Chevron reticle to be zeroed using the tip at 100 meters.
Width of the chevron at the base is 5.53 MOA which is at 19” at 300 meters. This allows range estimation for silhouette targets.
Dual Illumination (Fiber optics provides daylight illumination and tritium illuminates at night).

Technical Data
Weight: 15.1 oz. (428.08g)
Magnification: 4x
Objective Size: 32mm
Reticle Pattern: Chevron
Day Reticle Color: Red
Night Reticle Color: Red
Bullet Drop Compensating (BDC): Yes
Caliber: .223 / 5.56
Bindon Aiming Concept™ (BAC): Yes
Illumination Source: Fiber Optics & Tritium
Power Source: Fiber Optics & Tritium
Eye Relief: 1.5 in. (38.1mm)
Exit Pupil: 0.32 in. (8.13mm)
Field of View (degrees): 7°
Field of View (feet): 36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount: Flattop Thumbscrew Mount (TA51)
Housing Material: Forged Aluminum
Finish: Matte Black

• Availability: In Stock
